COUPLER ARM RAILCAR MOVER
The Coupler Arm railcar mover is ideal for applications up to 50,000 lbs. force, that feature bi-directional movement, empty and full cars, presence of scales, have wider pits, or curved track.
Configuration of Coupler Arm type; indexer
The indexer inserts between the railcar knuckles and completes its cycle of motion then retracts.
It’s stroke can be 1 car length, or multiple car lengths.
PATENT # 9,701,324 B2 (Curved Applications)
WANT ASSISTANCE OR MORE INFORMATION ON OUR RAILCAR MOVERS?
Send us a completed Questionnaire to work with one of our sales engineers on the best solution for your application.
Check out the Brochure to learn more about what options are available.
LIGHT DUTY COUPLER ARM
-

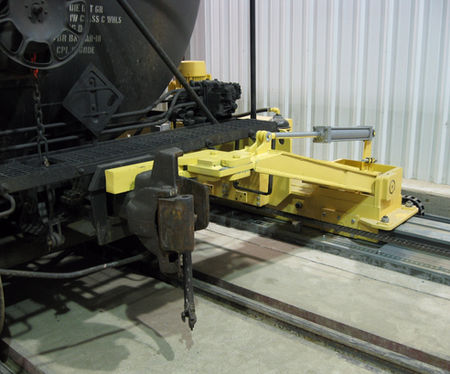

Coupler Arm fits over gap between coupler and body of railcar frame
-
IGUS Power Track
-
On Board Hydraulic power unit.
-
Maximum allowable force is 15,000 pounds
-
Speeds from 25-60 FPM
-
Curved track compatibility
HEAVY DUTY COUPLER ARM MOVER
-
Coupler Arm fits over gap between coupler and body of railcar frame
-
Igus Power Track
-
On Board Hydraulic power unit.
-
Maximum allowable force is 50,000 pounds
-
Speeds from 25-60 FPM
-
Dual track operation
