OUR SELECTION OF

HIGH DOG RAILCAR MOVERS

Calbrandt-Reversing-High-Dog-Indexer-on-

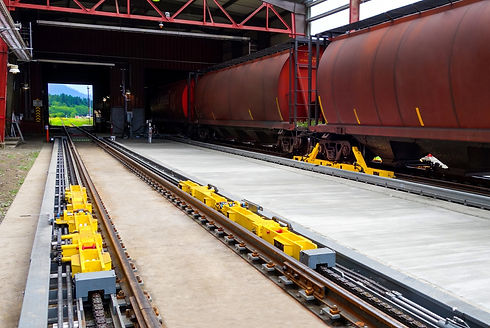

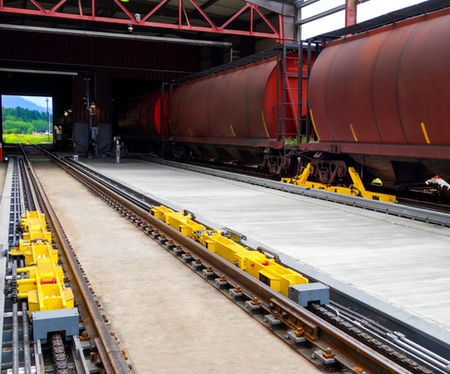

HIGH DOG RAILCAR MOVER

The High Dog railcar mover is our most powerful mover and can process a string of over 100 railcars. It is ideal for applications that feature bi-directional movement, empty and full cars, and up to an impressive 90,000 lbs of force.

Configurations of High Dog types; indexer

The indexer attaches to the top side of the railcar’s bogie frame and completes its cycle of motion then detaches while the progressor maintains continuous movement through the use of two attachment points.

PATENT # 5,709,153|

WANT ASSISTANCE OR MORE INFORMATION ON OUR RAILCAR MOVERS?

Send us a completed Questionnaire to work with one of our sales engineers on the best solution for your application.

Check out the Brochure to learn more about what options are available.

Calbrandt-Single-Direction-High-Dog-Inde
Calbrandt-Single-Direction-High-Dog-Inde

SINGLE DIRECTION HIGH DOG CARRIAGE-CHAIN & HYDRAULIC MOTOR DRIVEN

  • Configured for single direction

  • Pushes or pulls on the railcar Boogie Frames

  • One carriage is placed on each side of the railcar

  • Maximum allowable force on railcar Boogie Frames is 45,000 pounds per side or 90,000 pounds total

  • Indexing speeds from 25-60 FPM

  • Retrieving speeds up to 90 FPM


REVERSING DIRECTION CARRIAGE-CHAIN & HYDRAULIC MOTOR DRIVEN

  • Configured for reversing direction.

  • Pushes or pulls on the railcar Boogie Frames.

  • One carriage is placed on each side of the railcar.

  • Maximum allowable force on railcar Boogie Frames is 45,000 pounds per side or 90,000 pounds total.

  • Indexing speeds from 25-60 FPM

  • Retrieving speeds up to 90 FPM

Two-Calbrandt-Reversing-High-Dog-Indexer


SINGLE DIRECTION HIGH DOG CARRIAGE HYDRAULIC CYLINDER DRIVEN

  • Configured for single direction.

  • Pushes or pulls on the railcar Boogie Frames.

  • One carriage is placed on each side of the railcar.

  • Maximum allowable force on railcar Boogie Frames is 45,000 pounds per side or 90,000 pounds total.

  • Indexing speeds from 25-60 FPM

  • Retrieving speeds up to 90 FPM
